Type: Butterfly valve with gear operator

Manufacturing Stanard: API, ANSI, BS, DIN

Pressure: From 1/2" - 64" (DN15mm DN1600mm)

Pressure: PN0.1MPa to PN6.4MPa

Aplicable Temperature: 40 Deg.C - 425 Deg.C

Connection: Wafer, Flanged

Body Materials: Cast Iron, Ductile Iron, Aluminium bronze, Carbon Steel, Stainless Steel, Alloy etc.

Other Types & Sizes available on demand

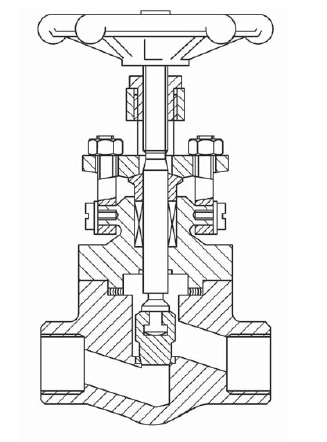

Type: Globe valve with gear operator

Manufacturing Stanard: API, ANSI, BS, DIN

Pressure: From 1/2" - 24" (DN15mm DN600mm)

Pressure: ANSI Class 125  to 300 (PN6-PN40)

Aplicable Temperature: 196 Deg.C - 593 Deg.C

Connection: Flanged, Butt-welded

Body Materials: Grey Iron, Ductile Iron, Bronze,  Stainless Steel, Alloy etc.

Other Types & Sizes available on demand

Type:

• BALL VALVE 2000 WOG WITH LOCKING DEVICE((2-PC) - Manufacturing Standards: ANSI, DIN, BS; Size Range:1/4"-4" Full Bore & Reduced Bore; Pressure: 2000 PSI for W.O.G.; Applicable Temperature: 60 - 450 deg. C; Connection: BW; SW; Threaded: BSPT, BSP, NPT, DIN2999; Body Matrials: STAINLESS STEELA351 CF8M; A351 CF8
• BALL VALVE 2000 WOG WITH LOCKING DEVICE((2-PC) - Manufacturing Stanandards, ANSI, DIN, BS; Size Range:1/4"-4" Full Bore & Reduced Bore; Pressure: 2000 PSI for W.O.G.; Applicable Temperature: 60 - 450 deg. C; Connection: BW; SW; Threaded: BSPT, BSP, NPT, DIN2999; Body Materials: STAINLESS STEELA351 CF8M; A351 CF8

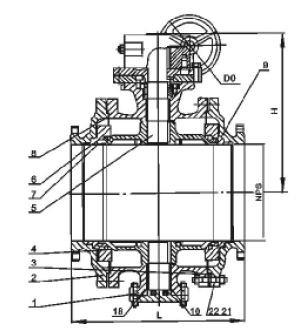

• BALL VALVE (2-Piece Body) - Type: Floating ball, Trunnion mounted ball; Size Range: From 1/2 inch to 36 inches (DN15mm - DN900mm); Pressure: From ANSI class 150 to 2500 (PN1.6-42MPa);Applicable Temperature: 196 - 380 deg. C; Connection: Flanged, But-Welded; Body Materials: Carbon steel, Stainless steel,(WCB, LCB, CF3, CF3M, CF8, CF8M, MONEL...)
• 2-PCS LIGHT DUTY BALL VALVE WITH LOCKING DEVICE - Manufacturing Standard: Threaded:BSPT, BSP, NPT, DIN2999; Size Range: 1/4"-3" Full Bore; Pressure: 1000 PSI for W.O.G.; Applicable Temperature: 60 - 450 deg.C; Connection: Screwed End; Body Material: STAINLESS STEEL A182 F316(CF8M)

  Other Types & Sizes available on demand

Type:

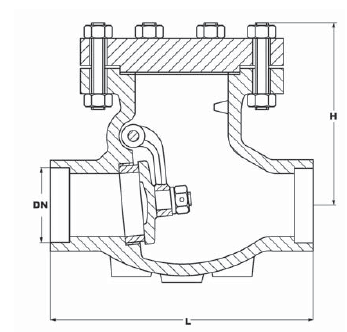

• Swing Check Valve (Cast Steel) - Pressure: 1/2" -24" (DN15-DN600mm); ANSI Class 150  to 2500 (PN1.6-PN42); Connection: Flanged, Butt-welded; Manufacturing Stanard: API, ANSI, BS, DIN
• Cast Iron Check Valve - 1/2" - 24" (DN15-DN600); ANSI Class 125 to 250 (PN10-PN16) - Other sizes on Request, Connection: Flanged; Manufacturing Standard: ANSI, BS, DIN
• Wafer Check Valve . Pressure: 1/2" -24" (DN15-DN600mm); NSI Class 150  to 2500 (PN1.6-PN42); Connection: Flanged, Butt-welded; Manufacturing Standard: API, ANSI, BS, DIN

Body Materials: Carbon Steel,  Stainless Steel (A105, 304, 304L, 316, 316L , Alloy etc.

Other Types & Sizes available on demand

Design: API 5D & API599

Tested: API 5D & API 598

Face to face to API 6D and ANSI B16.10; Flanged Ends to ANSI B6.5; Screwed Ends to ANSI B1.20.1

Sizes: 1/2" - 12" ; Class 150-600

Other Types & Sizes available on demand

Elbows - Welded and Seamless 45, 90, 180  deg. ANSI B16.11, ANSI B1.20.1, ANSI B16.9
